  • Seamless Stainless Tube is the representative product of basic material part that is using various industries such as petrochemicals, automobiles, shipbuilding, power plants and nuclear power industry.
    This product is applied for high pressure piping and instrumentation tubing and it was produced by high precision drawing process without welding process.



    Suggested Allowable Working Pressure For Seamless Tubing
  •
  • Tube O.D Tube Wall Thickness in.
    0.028" 0.035" 0.049" 0.065" 0.083" 0.095" 0.109" 0.12" 0.134" 0.156" 0.188"
    Working Pressure, bar (kg/cm²)
    1/8" 645 827
    1/4" 304 387 569 774
    3/8"   250 364 493 569     Temperature Condition : -20˚F~100˚F
    1/2"   197 281 387 509
    5/8"     220 304 395 455
    3/4"     182 250 319 372 440
    1"       182 235 273 319 357
    1 1/4"         182 213 250 273 311 372
    1 1/2"           175 205 228 225 304 372
    2"             152 167 190 220 273
  • * This table was based on the minimum thickness and the maximum outside dimension of standard ASTM A 269 range.
    * Corrosion was not regarded in the above numerical value.

  •
  •

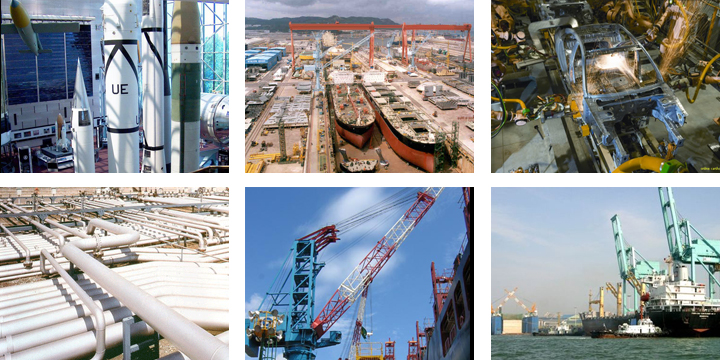

  • APPLICATION

    high pressure Tube : CNG&NGV, Aero Space, Electric, Power-Plant
    Instrumentation Tube : Ship Building, Petro-Chemistry
  •
  •
  •
